Scaling SWIR Beyond the Camera

Shortwave infrared (SWIR) imaging is often introduced through contrast. Moisture, coatings, contaminants, silicon features or material differences invisible to RGB cameras become measurable between 400-1700 nm. For industrial inspection, the question is whether the system can capture that contrast continuously, across multiple views, at production speed.

That shifts attention from the camera to the complete system stack. A scalable SWIR inspection system begins with cameras positioned across the line to cover width, angle and field of view.

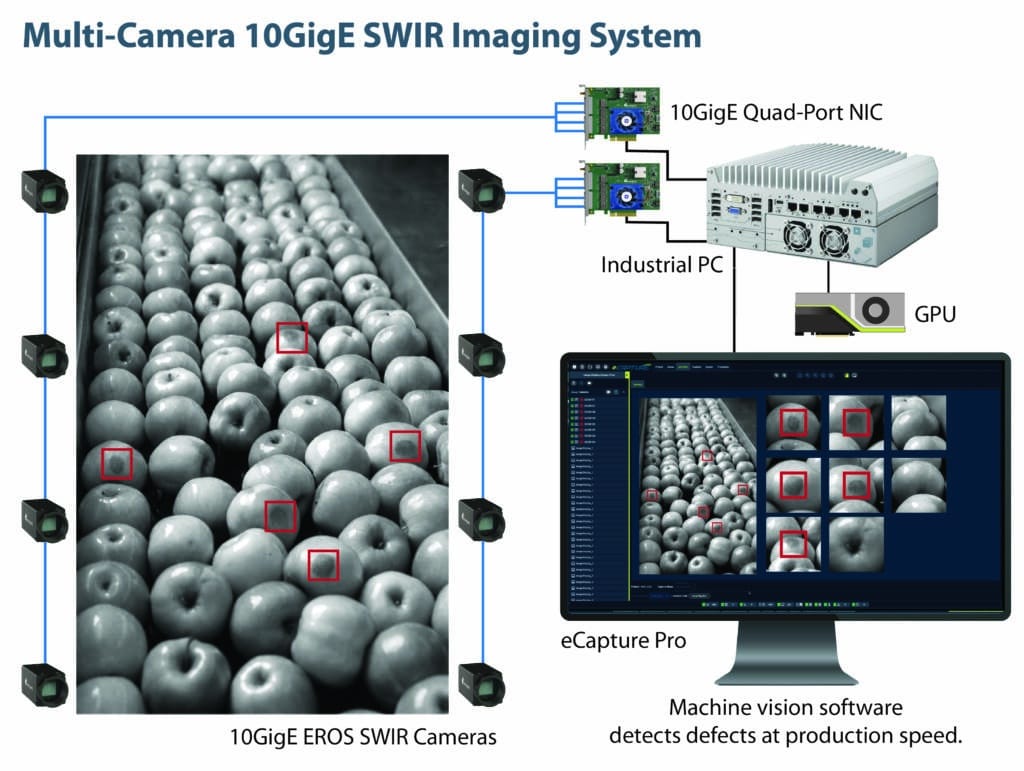

Diagram showing the configuration of an industrial PC to multiple SWIR cameras imaging a fruit sorting conveyor.

Emergent Multi-Camera SWIR System

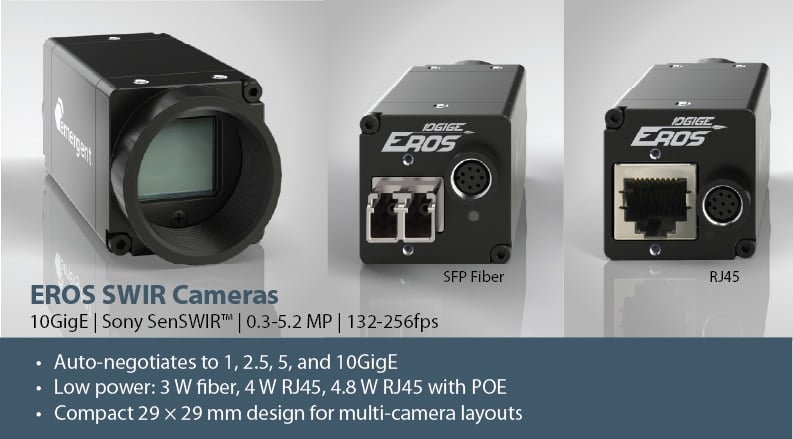

Emergent’s EROS 10GigE SWIR cameras are built for multi-camera layouts, using Sony SenSWIR™ sensors with 0.3-5.2 MP resolution and 132-256fps frame rates. Their compact 29 × 29 mm size fits dense installations, while auto-negotiation to 1, 2.5, 5, and 10GigE lets each camera match available network speed. Low power consumption—3 W over fiber, 4 W RJ45, and 4.8 W RJ45 with PoE—simplifies integration.

EROS cameras support GigE Vision 3.0 and RDMA standards, with IEEE 1588 synchronization to 1 µs. In multi-camera systems, these capabilities allow several SWIR views to behave as a coordinated inspection instrument rather than independent devices.

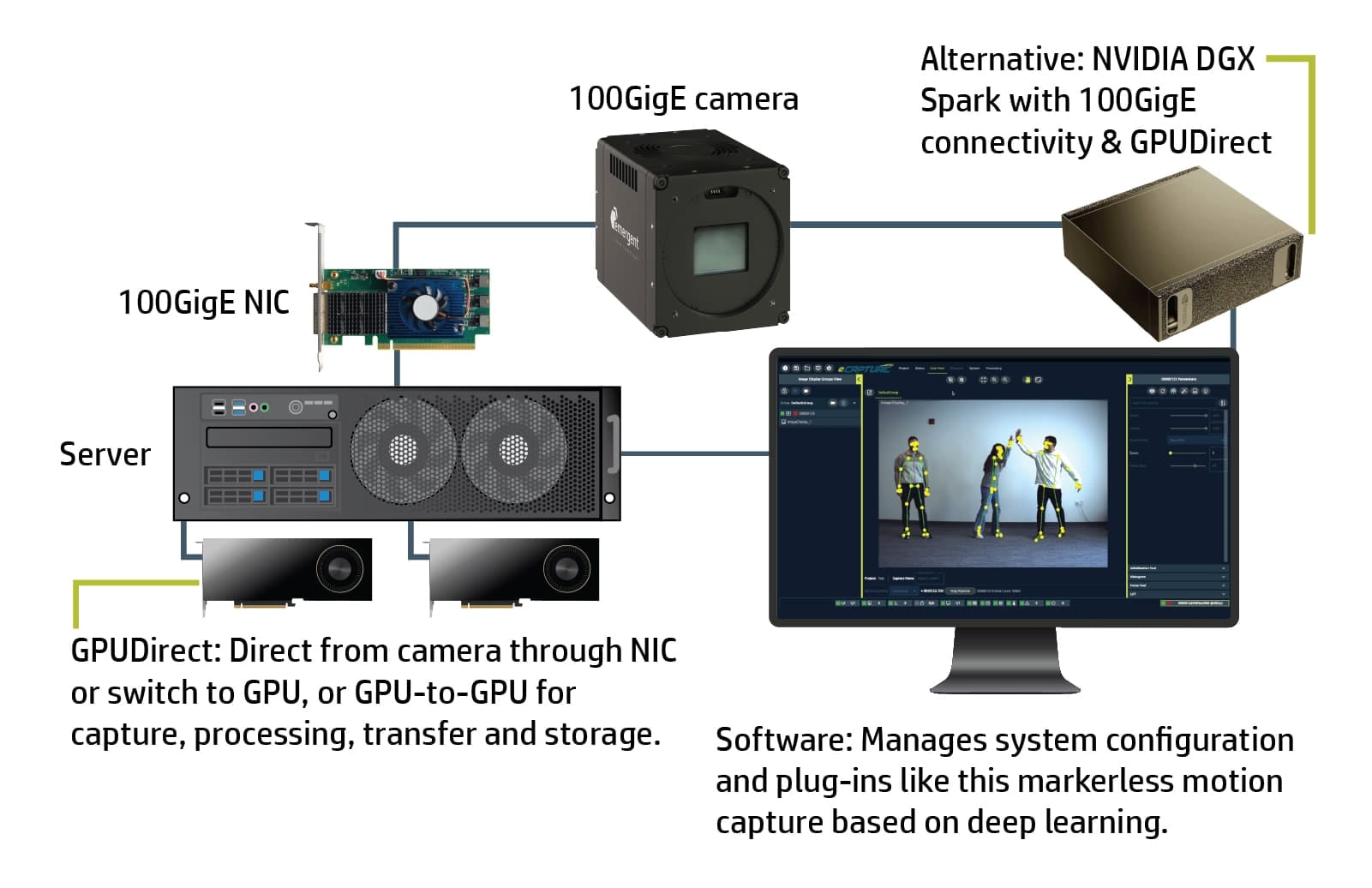

The next layer is the network. Ethernet-based designs can connect cameras directly to multi-port network interface cards or aggregate streams through switches, then route image data to servers or edge systems (e.g. Nuvo, NVIDIA DGX Spark / Orin / Thor). This simplifies scaling from a few cameras to many, but the switch, NICs, and cabling must be specified for sustained throughput, not peak brochure rates.

Once images reach the host, the bottleneck often moves to memory and processing. If data is copied repeatedly through system memory before reaching the application or GPU, frames can be lost even when the cameras and interface appear capable.

Zero-copy transport, RDMA, GPUDirect-capable NICs, and optimized GPU pipelines help preserve bandwidth for inspection. High-speed SWIR streams can feed GPU-based classification, defect detection, sorting, AI, or deep learning.
