HR Series 10GigE SFP+ Area Scan Cameras

HR Series cameras are proven for high-speed imaging in applications such as machine vision / industrial automation, volumetric capture and sports analytics. A complete ecosystem of camera speeds, resolutions and chroma versions is combined with cost-effective networking components to build complete imaging systems.

Multi-camera systems can be synced to 1 μs, which is critical to combining footage in post production, or analyzing images in real-time.

Designing a new 10GigE camera system? EROS is Emergent’s current compact 10GigE platform, offering SFP+ fiber and RJ45/PoE connectivity with lower power consumption and 29 × 29 mm dimensions. Explore EROS 10GigE cameras.

  • Resolution: 0.50 – 31.4 MP
  • Speed: 23 – 1586 FPS
  • Chroma: Color, Mono, Near Infrared, Polarized, UV
  • Sensors: Sony (including Pregius S for some models)
  • Interfaces: 10GigE SFP+
HR Series 10GigE cameras are proven reliability for machine vision applications, with framerates from 23 to 1586fps and resolutions from 0.5-50MP.

HR Series Camera Specifications

Feature

Specification
GigE Speed 10GigE (10x faster than 1GigE)
Sensors HR Series uses the latest global shutter sensors from Sony.
Power Requirements 7-9W (model dependent)
Dimensions Model dependent
Sensor & Shutter Type CMOS, Global Shutter
Standard Mounts C-Mount, M42, M52, RF (F Mount available for some models; mount type is model dependent)
Bit Depth 8-bit, 10-bit, 12-bit (model dependent)
Operating System Windows (64-bit), Linux (64-bit)
Compliance CE, FCC, RoHS, WEEE, GigE Vision, GenICam
Warranty 3 years
Third-Party Software Compatibility Cognex VisionPro, MVTec Halcon, NI Labview, GenTL Support

Available HR Series SFP+ Camera Models











Model Chroma Resolution Frame Rate Interface Sensor Name Pixel Size
System Designer is a sortable database of all Emergent GigE cameras, network interface cards, lenses and cables for machine vision.

System Designer helps you choose.

See the full ecosystem of Emergent’s GigE cameras, network interface cards, lenses and cables. System Designer helps you find the best camera for your application.

Customer innovation with HR Series cameras

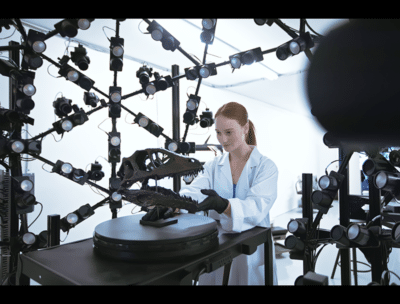

3D Scanning and Digital Character Capture

Advancements in visual effects (VFX) have led to a digital transformation in the entertainment industry and changed the way we consume media. Pixel Light Systems is bringing these digital characters, objects, and environments to life in movies, television shows, and video games with their deployment of a high-speed 3D digital capture system using HR Series 10GigE cameras.

case study: 3d scanning system brings digital characters to life figure 1: a replica dinosaur skull is placed inside of the 3d digital capture system for scanning.

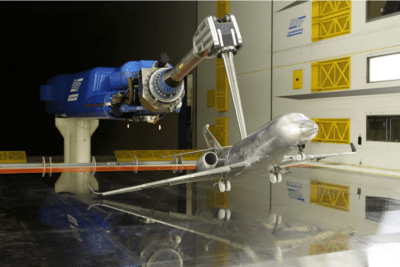

Wind Tunnel Measurement

In this wind tunnel testing application, German-Dutch Wind Tunnels chose Emergent HR Series cameras with 20MP CMOS sensors because its optical fiber interface allowed them to run all four cameras from the wind tunnel simulation to a single remote PC.

Case Study: High-Speed Cameras Aid Wing Deformation Measurement Test in Wind Tunnels - 9uo74kyM
