HB-127-S: 25GigE camera with Sony IMX661

HB-127-S: 127.7MP 25GigE camera with Sony IMX661

HB-127-S features the Sony IMX661 CMOS sensor. At full resolution (13376 x 9528), you get 17 frames per second. Its ultra high-speed 25GigE SFP28 interface offers many benefits including low-cost accessories, low CPU overhead, low latency, low jitter, and accurate multi-camera synchronization using IEEE1588. In addition, 25GigE SFP28 offers three supported cabling options for cable lengths from 1M to 10KM.

Benefits

High-speed 25GigE SFP28
25x the speed of GigE
GigE Vision® and GenICam™ compliant
Available in monochrome (HB-127-S-M), and color (HB-127-S-C)
Optional IP67 housing

Applications

Virtual Reality
Goal Line Technology
Volumetric Capture
Motion Capture
Immersive 3D Content
Finish Line Vision
Referee Assist
Flat Panel Inspection
Machine Vision

Sensor	IMX661
Resolution	13376 x 9528
Megapixels	127.4MP
Sensor Type	56.7mm CMOS
Max Frame Rate	17fps @ 8-bit, 15fps @12-bit
Cell Size	3.45×3.45µm
Standard Mount	M82 x 0.75 Mount, EF/F Mount Available
Shutter	Global
Bit Depth	8, & 12 Bit
GPIO / Triggering	3 in, 3 out Software, External (Pulse or Edge)
Interface	25GigE SFP28
Exposure/Integration*	1μs – 1s
Dynamic Range	>66db
Monochrome Modes	Mono8, Mono12, Mono12Packed
Color Modes	N/A
Raw Modes	BayerRG8, BayerRG12, BayerRG12Packed
Operating System	Windows (64-bit), Linux (64-bit)
Compliance	CE, FCC, RoHS, WEEE, GigE Vision, GenICam
Power Requirements	12W, 12V
Operating Temperature	0°C – 45°C
Storage Temperature	-30°C – +60°C
Dimensions & Weight	95 x 95 x 53mm – 800g
Warranty	2 Years

*all minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.

Product Notifications

Log in to get full access to our camera resources and receive an email notification when new manuals, software and firmware versions has been released.

Login

Technical Details

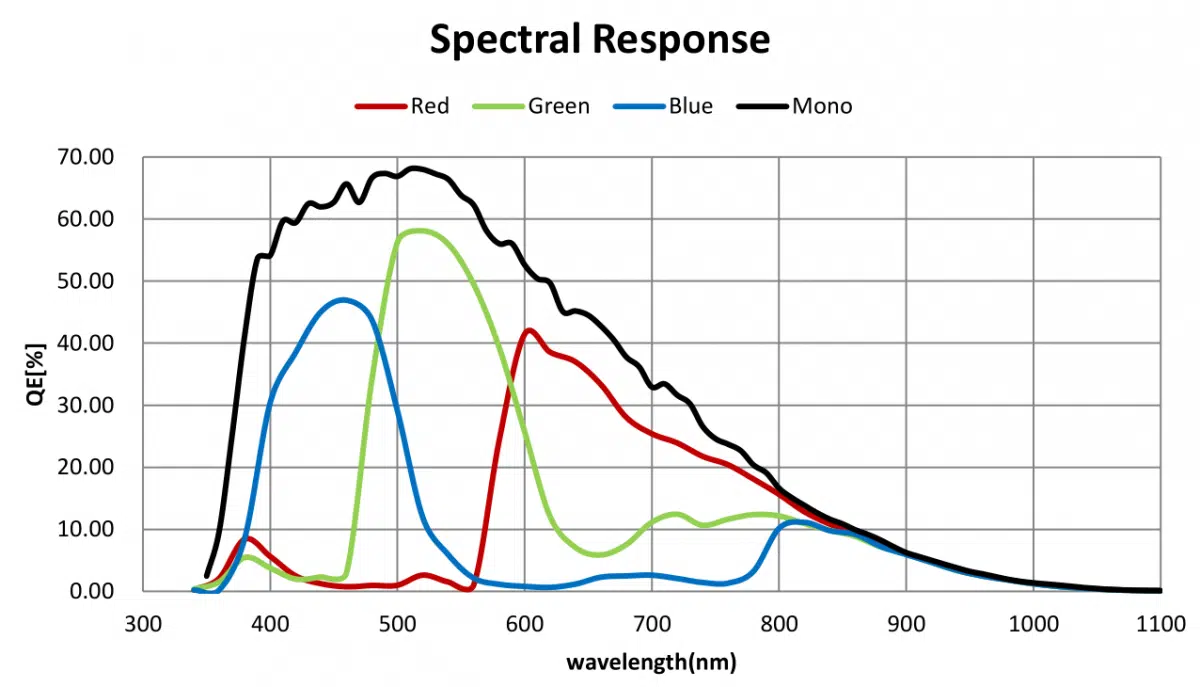

Quantum Efficiency – Gpixel Mono & Color

Mechanical Drawings

95mm x 95mm x 52mm
