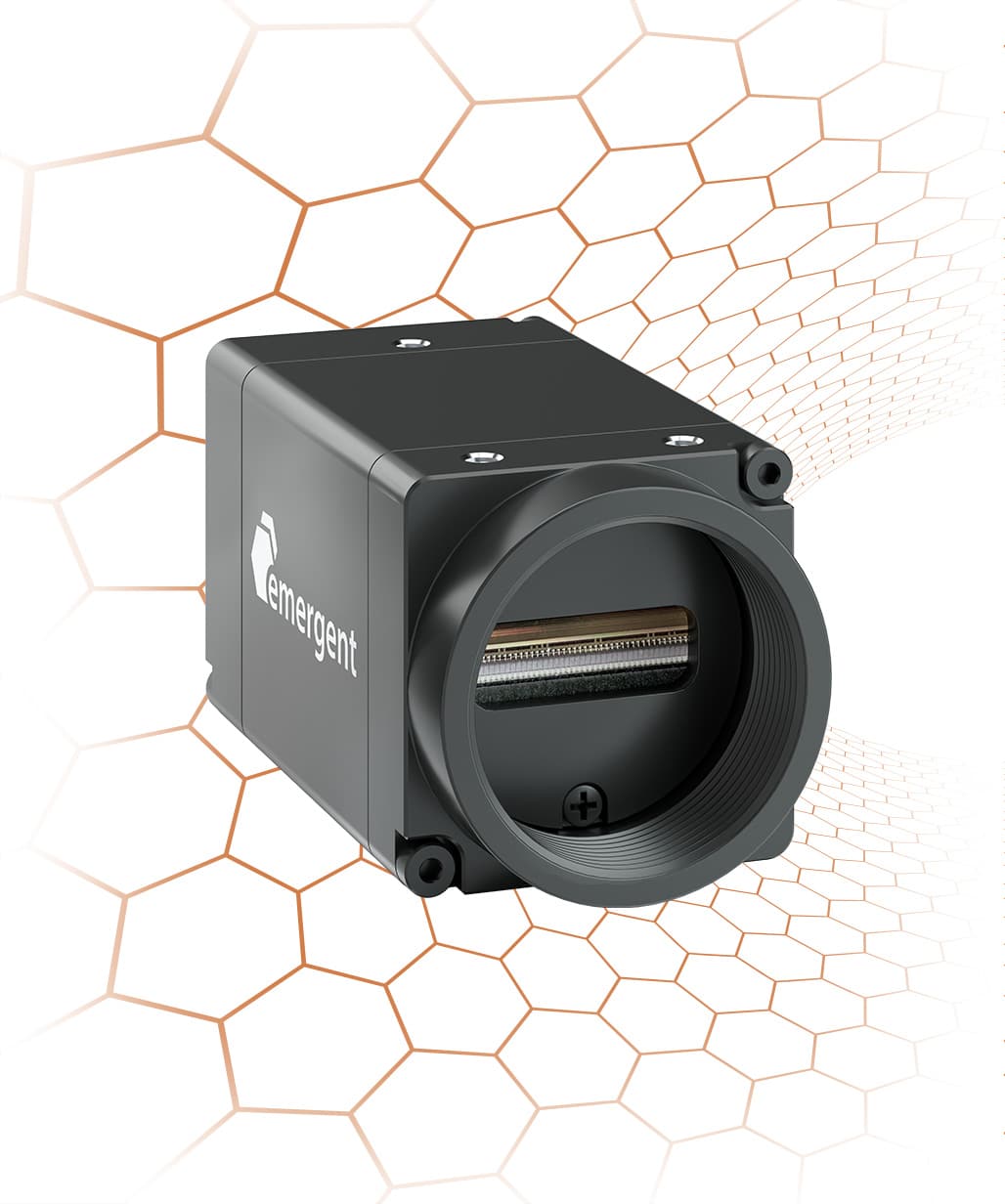

EROS 10GigE Line Scan Cameras (LE Series)
EROS LE is Emergent’s compact 10GigE line-scan camera family. EROS line-scan cameras debuted at VISION 2026 and are designed for cost-efficient industrial inspection systems. The first camera in the series, the LE-4KG35, is available in mono and color and delivers 4K imaging.
EROS cameras are the smallest 10GigE cameras available at 29 x 29 mm and consume just 3 W over SFP+ fiber, 4 W over RJ45 without PoE, or 4.8 W over RJ45 with PoE—ideal for systems where space and power are limited.
EROS LE supports GigE Vision 3.0 and RDMA/RoCEv2 workflows for low-latency, high-throughput streaming. Automatic negotiation between 10, 5, 2.5 and 1GigE enables integration with existing networks and embedded platforms, with room to scale as imaging requirements grow.
- Resolution: 4K
- Speed: 84.4 kHz Single Line Rate, 42.6 kHz Dual Line Rate
- Chroma: Color, Mono
- Sensors: Gpixel
- Interfaces: RJ45 (with and without PoE), Fiber
- Warranty: 3 years

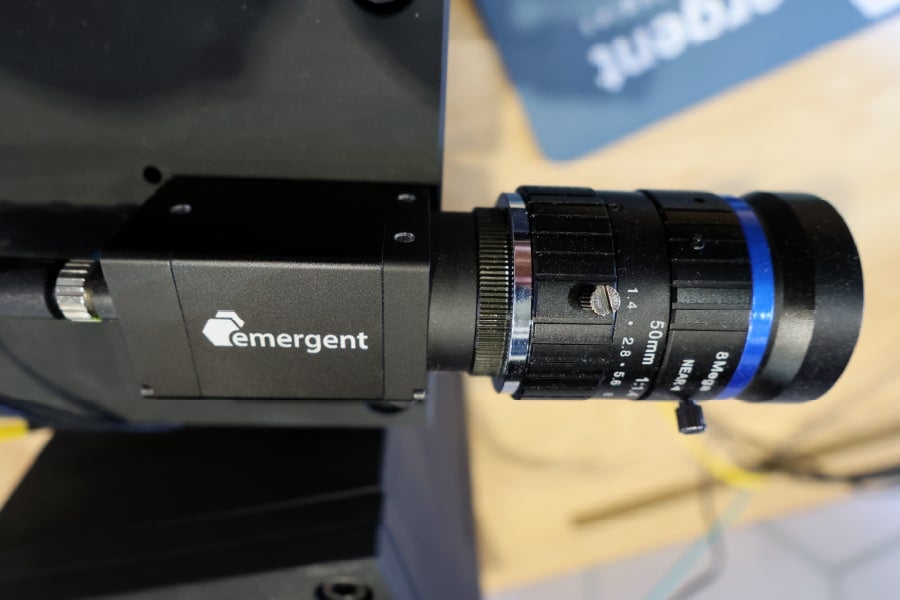

EROS LE Line Scan Cameras
At just 29 x 29 mm, EROS LE line scan cameras are the smallest available 10GigE line scan cameras in the world.

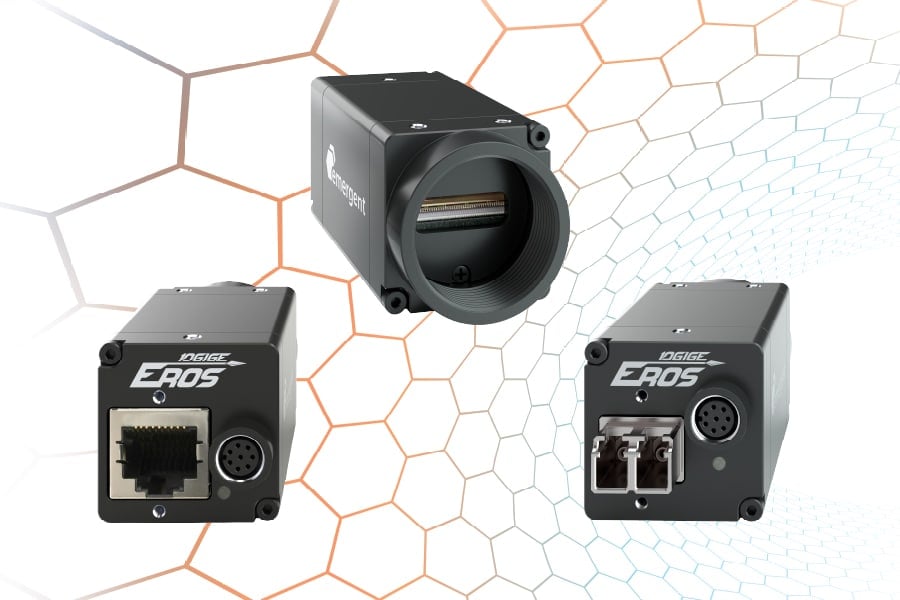

EROS LE Line Scan Cameras with fiber and RJ45 connections
EROS LE cameras are incredibly power-efficient, available with fiber (3 W), RJ45 without PoE (4 W) and RJ45 with PoE (4.8 W) connections.

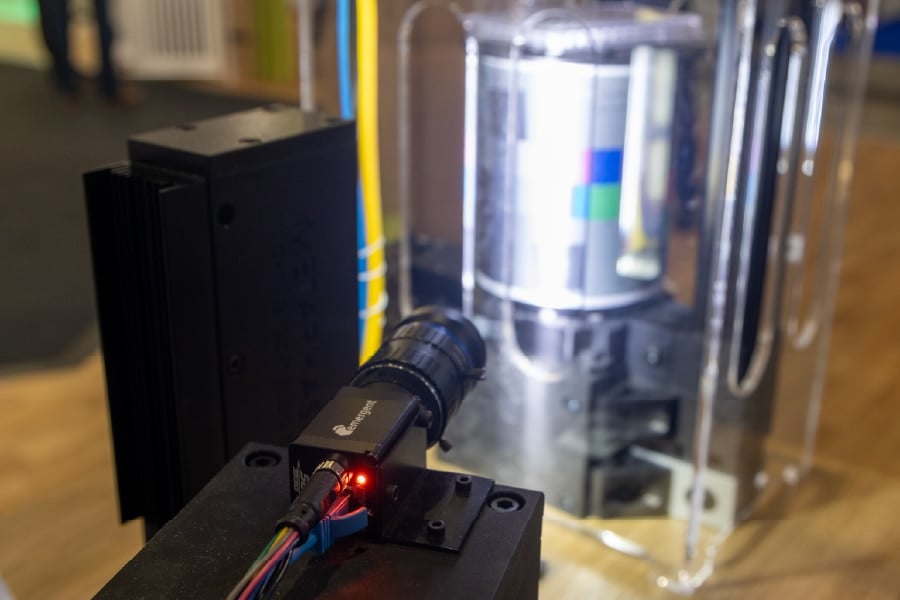

EROS LE 10GigE Line Scan Cameras
EROS LE 10GigE line scan cameras are available in mono and color versions, and reach a single line rate of 84.4 kHz.
EROS LE-4KG35 10GigE Line-Scan Camera Specifications
| Sensor | Gpixel GL3504 |
| Resolution | 4Kx2 |
| Line Scan Mode | Single line – 84.4 kHz | Dual line – 42.6 kHz |
| Sensor Scanning Width | 14.336 mm |
| Cell Size | 3.5 x 3.5 μm |
| Standard Mount | C-Mount, Optional: EF, RF, MFT |
| Shutter | Global |
| Bit Depth | 8- & 12-bit |
| GPIO / Triggering | TBD |
| Interface | 10GigE, 5GigE, 2.5GigE, 1GigE – RJ45 (With and Without PoE) and Fiber |
| Exposure/Integration* | 1 μs-1 s |
| Dynamic Range | 66 dB |
| Monochrome Modes | Mono8, Mono12, Mono12Packed |
| Color Modes | RGB8 |
| Corrections | Flat shading (dark, lit), Spatial |
| Operating System | Windows (64-bit), Linux (64-bit) |
| Vision Standards |
GigE Vision 3.0, RDMA, RoCEv2, GenICam
|
| Regulatory |
CE, FCC, RoHS, WEEE
|
| Power Requirements | 4.8 W (RJ45/PoE), 4 W (without PoE, 12 V), 3 W (LC FIBER) |
| Operating Temperature | -20°C – +50°C |
| Storage Temperature | -30°C – +60°C |
| Dimensions & Weight | 29 x 29 x 44.5 mm | 80 g |
| Warranty | 3 Years |
*All minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.
