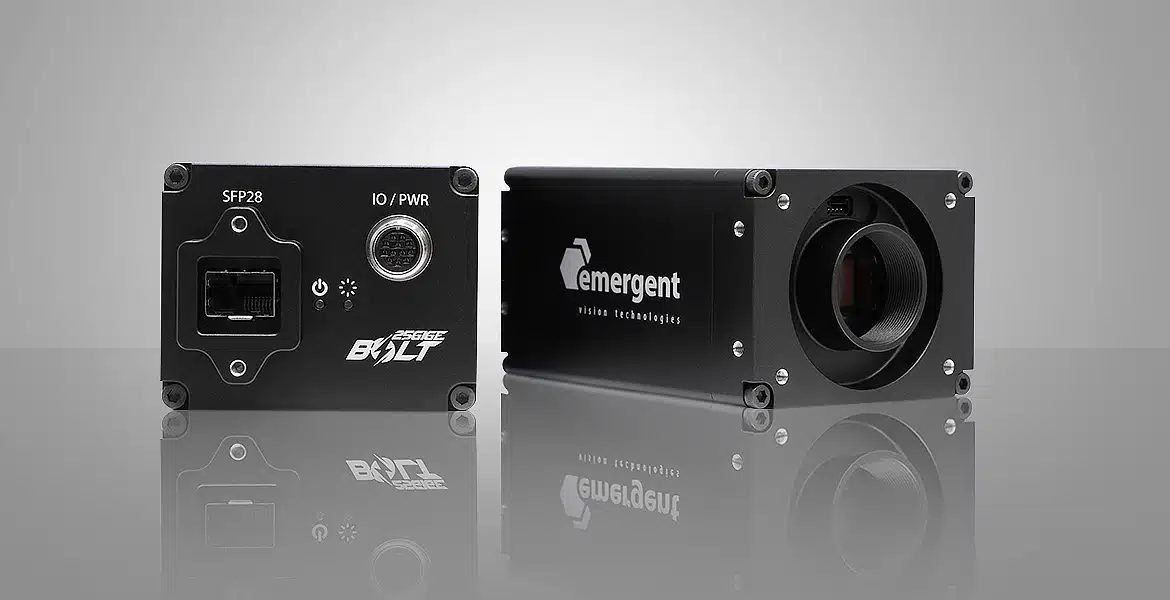

HB-12000-SBL: 25GigE camera with Sony IMX936 NEW
243 fps | 4128 x 3008 | 12.4MP
The BOLT 25GigE HB-12000-SBL features the back-illuminated Sony IMX936 CMOS sensor. At full resolution (12.4 MP, 4128 × 3008), it achieves up to 243 frames per second.
Its 25GigE SFP28 interface offers many benefits including low-cost accessories, low CPU overhead, low latency, low jitter, and accurate multi-camera synchronization using IEEE1588. Emergent supports standard SFP28 cabling options, including lengths from 1 meter to 10 kilometers.
If you like the Sony IMX936 sensor, but require higher framerates, look at the ZENITH 100GigE HZ-12000-SB, which contains the IMX926 sensor.
Specifications
Sensor
| Sensor Model | Sony IMX936 |
| Resolution | 4128 x 3008 |
| Megapixels | 12.4 MP |
| Sensor Type | 14mm CMOS (1/1.1) |
| Pixel Size | 2.74 µm |
| Chroma | Mono, Color |
| Shutter | Global |
Performance
| Max Frame Rate | 243 fps (8-bit) |
| 162 fps (10-bit) | |
| 162 fps (12-bit) | |
| Bit Depth | 8, 10, 12-bit |
| QE Peak | 78% |
| Full Well | 9549 e- |
| Read Noise | 6.1 e- |
| Dynamic Range | 65.1 dB |
| SNR Max | 39.8 dB |
Interface & I/O
| Interface | 25GigE-SFP28 |
| GPIO | 3 in, 3 out |
| Triggering | Software, External (Pulse or Edge) |
| Exposure * | 1µs - 1s |
| Mono Modes | Mono8, Mono10, Mono10Packed, Mono12, Mono12Packed |
| Color Modes | - |
| Raw Modes | BayerRG8, BayerRG10, BayerRG10Packed, BayerRG12, BayerRG12Packed |
Physical
| Lens Mount | C Mount, MFT Mount, RF Mount, EF/F Mount |
| Dimensions | 97 x 66 x 52mm |
| Weight | 500g |
Environment / Operation
| Operating Temp | -20°C to 50°C |
| Storage Temp | -30°C to 60°C |
| Power | 12W (12V) |
| Operating System | Windows, Linux |
Standards
| Vision Standards | GigE Vision 3.0, RDMA, RoCEv2, GenICam |
| Certifications | CE, FCC, RoHS, WEEE |
| Warranty | 3 Years |
* All minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.
Benefits & Applications
Benefits
- High-speed 25GigE SFP28
- RoCEv2, RDMA, GigEVision® 3.0 firmware available. GenICam™ compliant.
- Back-illuminated pixel structure
- 25x the speed of GigE
- Available in monochrome (HB-12000-SBL-M), and color (HB-12000-SBL-C)
- Optional IP67 housing
Applications
- Industrial Inspection
- Automation
- Intelligent Transportation Systems
- Logistics
- Virtual Reality
- Volumetric Capture
- Referee Assist
Mechanical Drawing
QE
Quantum Efficiency
Spectral Response
Chart
Product Datasheet
