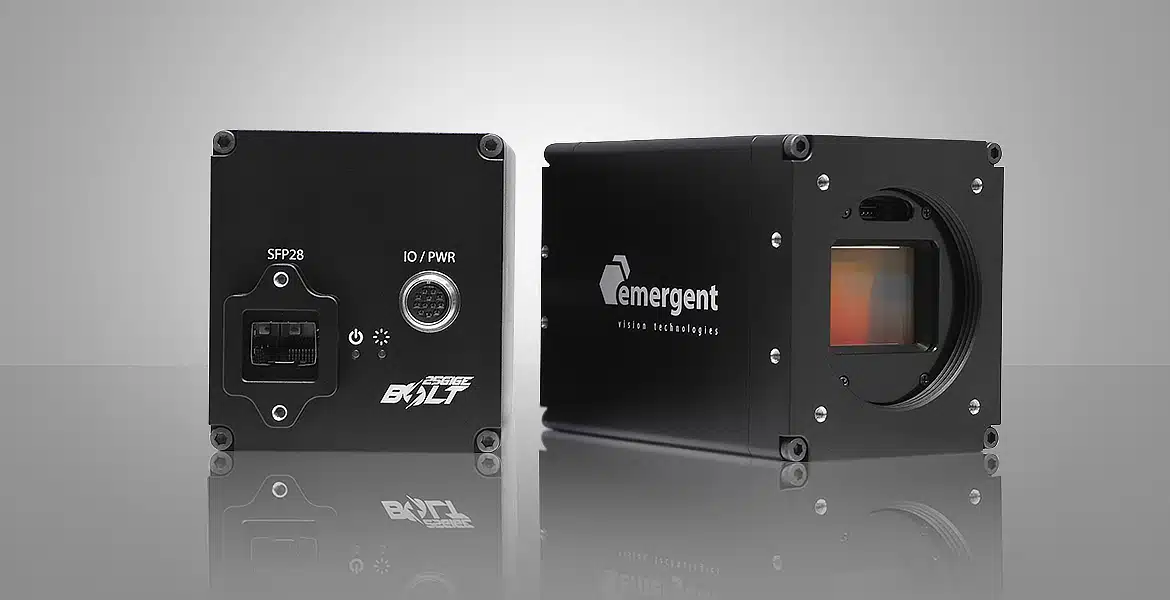

HB-50000-SBL: 25GigE camera with Sony IMX939 NEW
59 fps | 8224 x 6176 | 50.8MP
The BOLT 25GigE HB-50000-SBL features the back-illuminated Sony IMX939 CMOS sensor. At full resolution (50.8 MP, 8224 × 6176), it achieves up to 59 frames per second.
Its 25GigE SFP28 interface offers many benefits including low-cost accessories, low CPU overhead, low latency, low jitter, and accurate multi-camera synchronization using IEEE1588. Emergent supports standard SFP28 cabling options, including lengths from 1 meter to 10 kilometers.
If you like the Sony IMX939 sensor, but require higher framerates, look at the ZENITH 100GigE HZ-50000-SB, which contains the IMX929 sensor.
Specifications
Sensor
| Sensor Model | Sony IMX939 |
| Resolution | 8224 x 6176 |
| Megapixels | 50.8 MP |
| Sensor Type | CMOS (1.8) |
| Pixel Size | 2.74 µm |
| Chroma | Color, Mono |
| Shutter | Global |
Performance
| Max Frame Rate | 59 fps (8-bit) |
| 40 fps (10-bit) | |
| 40 fps (12-bit) | |
| Bit Depth | 8, 10, 12-bit |
| QE Peak | 66% |
| Full Well | 11000 e- |
| Read Noise | 10 e- |
| Dynamic Range | 60 dB |
| SNR Max | 40.4 dB |
Interface & I/O
| Interface | 25GigE-SFP28 |
| GPIO | 3 in, 3 out |
| Triggering | Software, External (Pulse or Edge) |
| Exposure * | 1µs - 1s |
| Mono Modes | Mono8, Mono10, Mono10Packed, Mono12, Mono12Packed |
| Color Modes | - |
| Raw Modes | BayerRG8, BayerRG10, BayerRG10Packed, BayerRG12, BayerRG12Packed |
Physical
| Lens Mount | M52 Mount, MFT Mount, RF Mount, EF/F Mount |
| Back Focal Length | 12mm |
| Dimensions | 97 x 66 x 73mm |
| Weight | 750g |
Environment / Operation
| Operating Temp | -20°C to 50°C |
| Storage Temp | -30°C to 60°C |
| Power | 12W (12V) |
| Operating System | Windows, Linux |
Standards
| Vision Standards | GigE Vision 3.0, RDMA, RoCEv2, GenICam |
| Certifications | CE, FCC, RoHS, WEEE |
| Warranty | 3 Years |
* All minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.
Benefits & Applications
Benefits
- High-speed 25GigE SFP28
- RoCEv2, RDMA, GigEVision® 3.0 firmware available. GenICam™ compliant.
- Back-illuminated pixel structure
- 25x the speed of GigE
- Available in monochrome (HB-50000-SBL-M), and color (HB-50000-SBL-C)
- Optional IP67 housing
Applications
- Industrial Inspection
- Automation
- Intelligent Transportation Systems
- Logistics
- Virtual Reality
- Volumetric Capture
- Referee Assist
Mechanical Drawing
QE
Quantum Efficiency
Spectral Response
Chart
Product Datasheet

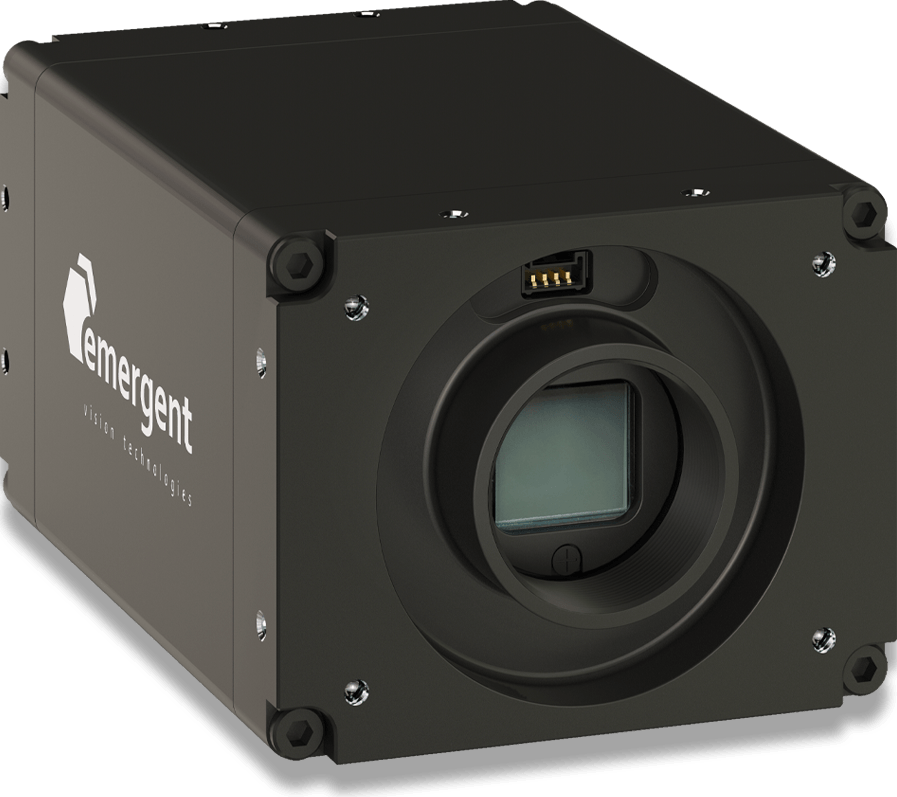

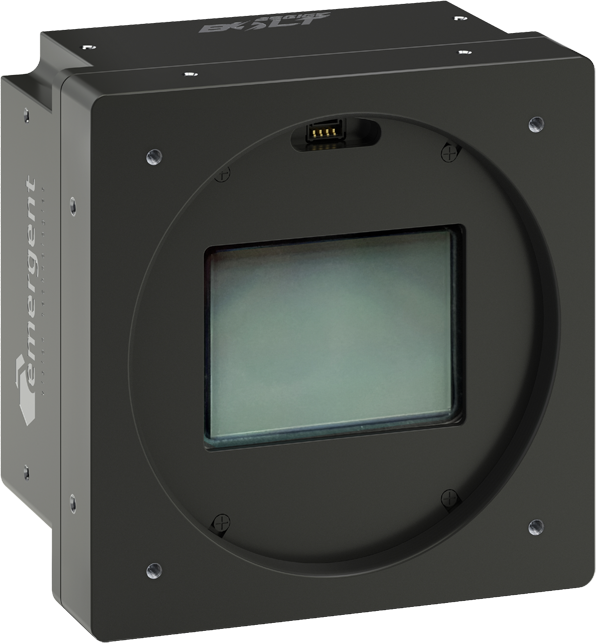

More BOLT 25GigE Cameras
Build Complete GigE Camera Systems

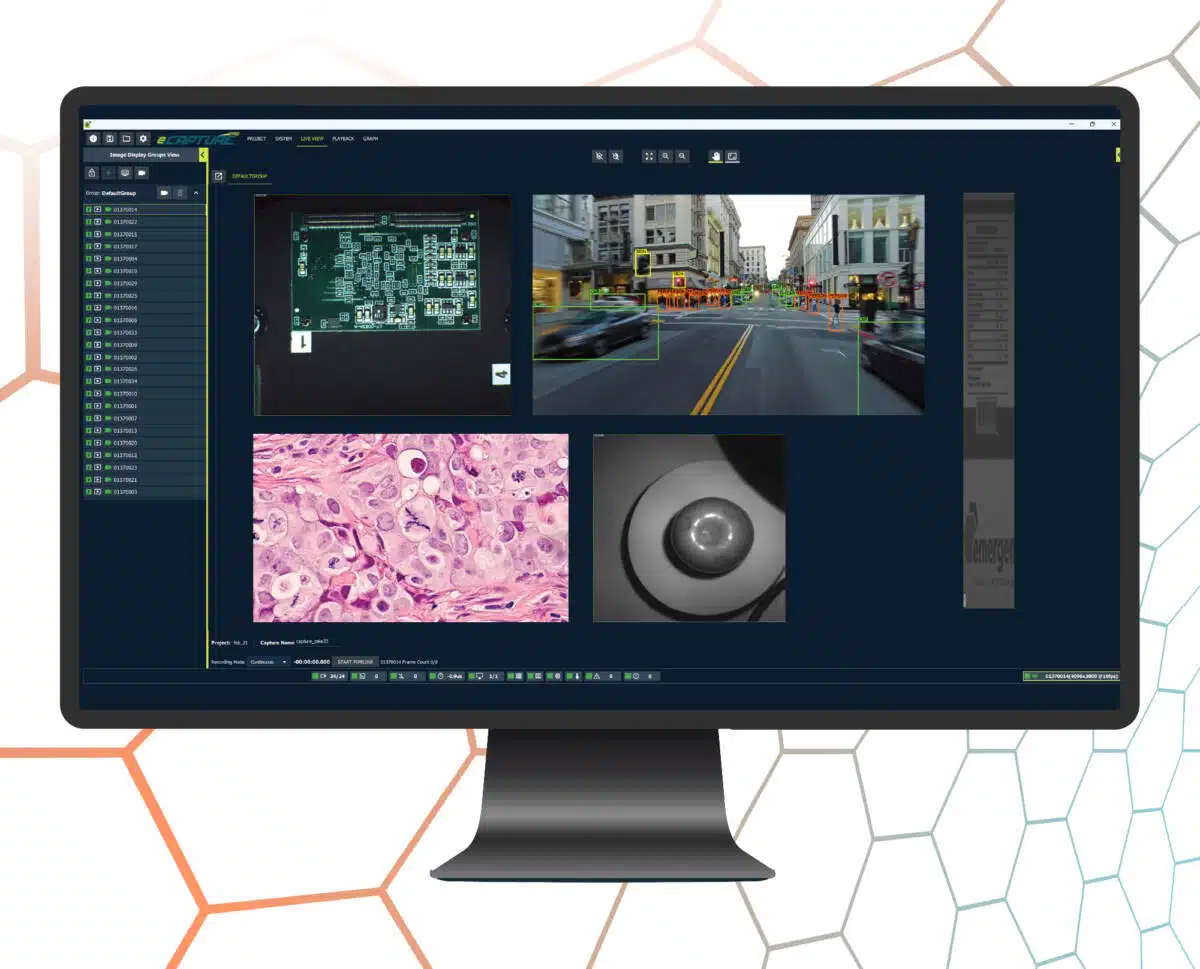

eCapture Pro runs high-performance vision systems.
GUI-based machine vision software for 10, 25, and 100GigE camera systems, enabling rapid configuration, multi-camera control, and reliable high-speed image acquisition.
Explore eCapture Pro

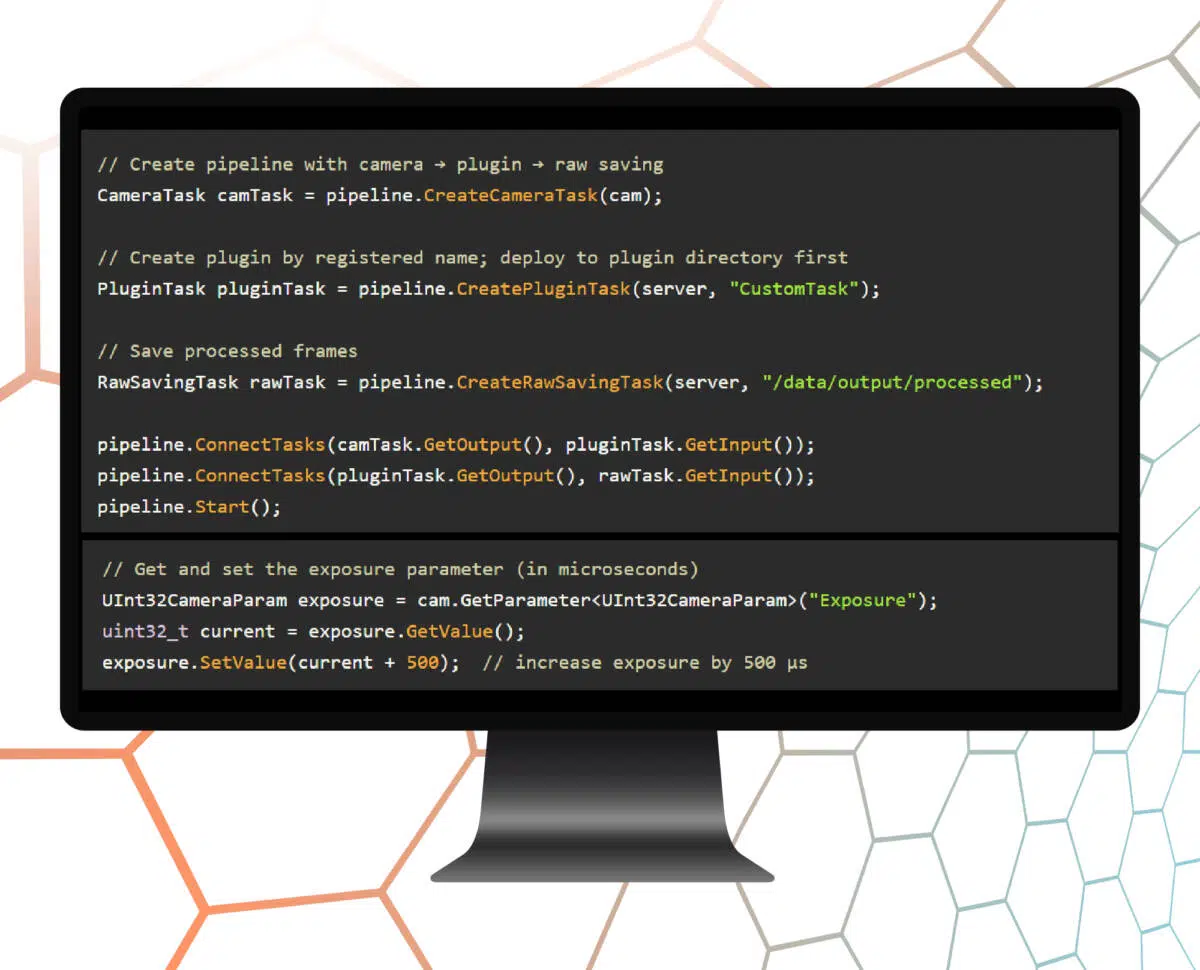

eSDK Pro build your own vision machine applications.
SDK for building vision applications with efficient capture, processing, transport, and storage, enabling seamless integration with third-party software and OEM systems.
Explore eSDK Pro

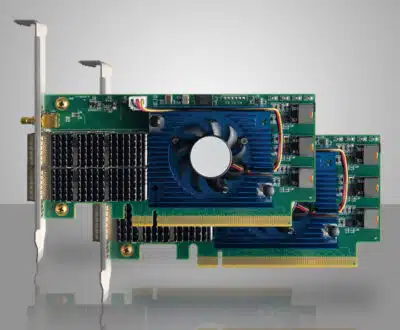

Network Interface Cards (NICs)
